Case study: Video mapping – Donjon de Niort – December 2020

Mapping vidéo Noël 2020 Donjon de Niort

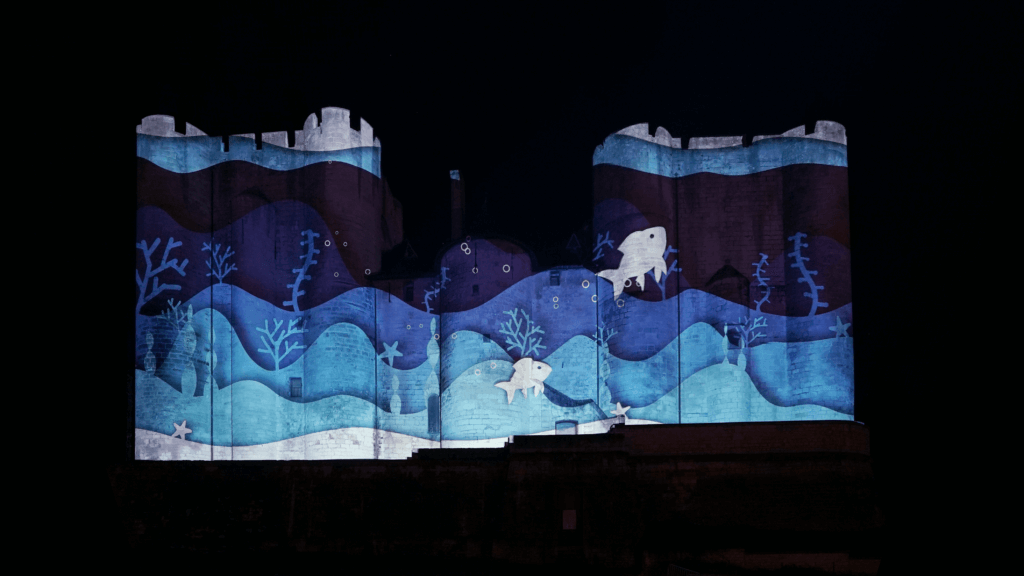

Electroson Studio was selected by the City of Niort as part of the 2020 end-of-year celebrations to project on the dungeon our original 10-minute poetic and colorful show made up of 6 tableaux, dreams of light, from December 5, 2020 to January 4, 2021.

Thanks to our video workshops, the young artists of the schools of the city were also put to contribution by proposing their drawings which will be projected onto the dungeon between each screening of the show.

The 6 video projectors Epson EB-L1715S are installed in overlay by 2. The projection towers are placed as close as possible to the dungeon so as not to encroach on the Christmas market, which therefore required the installation ofwide angle optics Epson ELPLW06.

The facility is controlled by a media server Module Pi STD-3, each output being connected to a DVI splitter. The settings of overlay were made with the software Epson Projector Professional Tool, and fine adjustments were made on the Modulo Pi for each output.

Material :
– 3 Projection towers sealed, ventilated and heated designed by Electroson Studio
– 6 Video projectors Epson EB-L1715S with optics ELPLW06 – 15,000 lumens
– 1 Media server Module Pi STD-3
– 4 Speakers RCF of 400W RMS in the projection towers
– 8 15W public address speakers distributed on site
– 1 4G modem + IP camera + computer with Modulo Player Remote for the remote control
